Clinical Breakthrough: World's Smallest Magnetic Levitation Artificial Heart Implanted in a 9-Year-Old Patient

The treatment of end-stage pediatric heart failure has always been a formidable challenge in global cardiovascular surgery. Recently, the Department of Cardiovascular Surgery at Wuhan Union Hospital (led by Prof. Nianguo Dong) achieved a significant milestone by successfully implanting an ultra-micro, full-magnetic levitation left ventricular assist device (LVAD) in a 9-year-old boy.

Weighing only 45 grams, this device represents a full-chain breakthrough in medical-engineering innovation, filling a critical gap in mechanical circulatory support (MCS) for low-weight pediatric patients.

The Clinical Dilemma: A Race Against Time

The patient, a 9-year-old male with a low body weight, was diagnosed with severe dilated cardiomyopathy. His left ventricular ejection fraction (LVEF) had plummeted below 15%, indicating an almost complete loss of native pump function.

For such patients, heart transplantation is the ultimate cure. However, pediatric donor hearts are extremely scarce. Statistics show that the mortality rate for pediatric heart failure patients on the transplant waitlist can reach up to 40%. Furthermore, existing VADs are primarily designed for adults; their large size makes them anatomically unsuitable for children, leaving low-weight patients in a chronic state of having "no pump available."

The Engineering Paradox of Pediatric LVADs

Developing a pediatric artificial heart is not simply a matter of scaling down an adult device. It involves overcoming a severe hemodynamic paradox:

1. RPM vs. Thermal Damage: To maintain sufficient pumping efficiency (cardiac output) with a smaller pump volume, the rotational speed (RPM) must be significantly increased. However, higher RPMs generate excessive heat from the motor, which can cause thermal injury to surrounding tissues.
2. Shear Stress vs. Thrombosis: High-speed rotation creates extreme shear stress within the blood flow. This stress can easily destroy red blood cells (hemolysis) and trigger the coagulation cascade, leading to fatal thrombosis.

The Breakthrough: A 45-Gram "Engineering Marvel"

To address these challenges, the clinical team collaborated with CorHeart (a Shenzhen-based medtech company) to develop a novel pediatric full-magnetic levitation artificial heart. After nearly four years of iterative R&D, the device achieved several engineering limits:

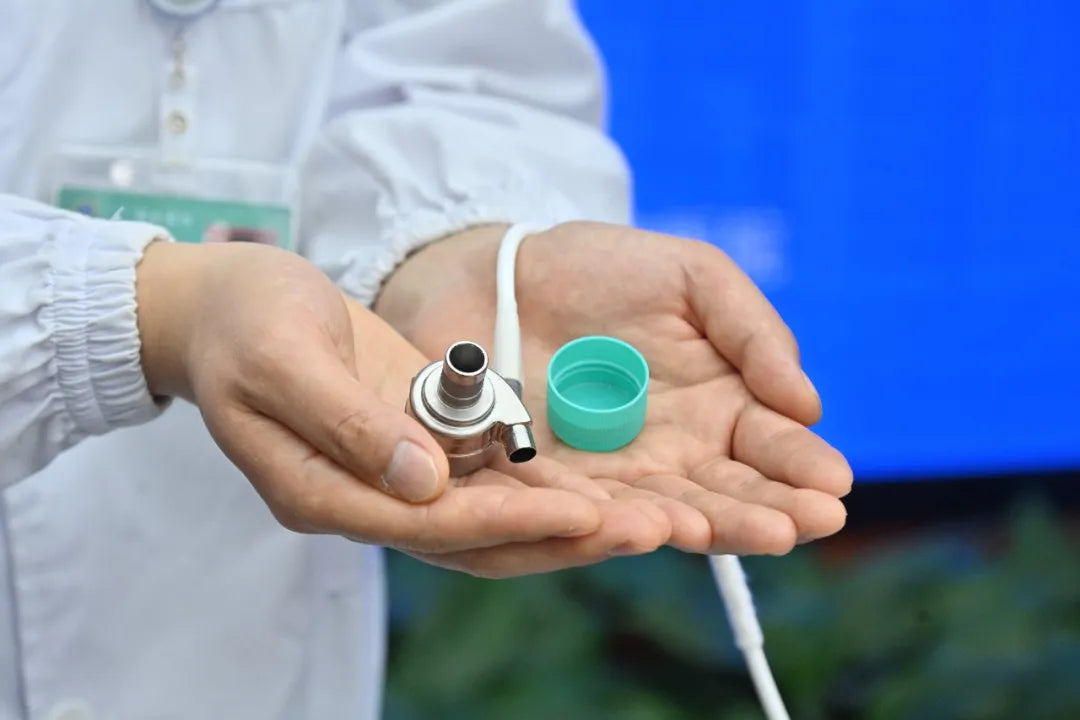

• Ultra-Micro Size: The pump weighs a mere 45 grams with an outer diameter of 2.9 cm—roughly the size of a bottle cap.
• Magnetic Levitation Motor: By utilizing a high-efficiency, low-consumption magnetic levitation motor, the device eliminates mechanical friction, effectively controlling heat generation even at high RPMs.
• Optimized Hemodynamics: Through advanced fluid dynamics simulations, the internal blood flow channels were reshaped. This accelerated blood flow velocity and shortened residence time, minimizing mechanical damage to blood cells and significantly reducing the risk of hemolysis and pump thrombosis.

Surgical Execution and Clinical Outcome

The surgical procedure demanded extreme precision due to the limited space within the pediatric thoracic cavity. During the 5-hour operation, the surgical team meticulously adjusted the length of the inflow cannula and the implantation angle to perfectly fit the child's anatomy. The micro-pump was successfully implanted at the apex of the left ventricle, with the outflow graft anastomosed to the ascending aorta.

The postoperative recovery was remarkably smooth. With strict anticoagulation and hemodynamic management, the patient was successfully weaned off the ventilator on postoperative day 3. Currently, his vital signs are stable, and he has resumed normal daily activities carrying a portable system controller.

Conclusion: A Reliable "Bridge to Transplant"

Designed for a lifespan of over 15 years, this ultra-micro artificial heart is not just a temporary fix; it is a vital Bridge to Transplant (BTT). It provides end-stage pediatric heart failure patients with the crucial time needed to grow and wait for a suitable donor heart, fundamentally changing the treatment landscape for pediatric cardiovascular diseases.

This case stands as a testament to the immense potential of medical-engineering cross-collaboration in pushing the boundaries of modern cardiovascular interventions.
